openlayer使用
1、定义
OpenLayers 是一个高性能、功能丰富的库，用于在 Web 上创建交互式地图。它可以显示从任何来源加载的地图图块、矢量数据和标记。
引用ol.js和ol.css即可使用
2、覆盖物
主要有marker图标、线、图形（圆形、正方形等）
<!doctype html>
<html xmlns:th="http://www.thymeleaf.org">
<html lang="en">
<head>
<meta charset="UTF-8">
<title>map</title>
<meta name="renderer" content="webkit|ie-comp|ie-stand">
<meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1">
<meta name="viewport"
content="width=device-width, initial-scale=1.0, minimum-scale=1.0, maximum-scale=1.0, user-scalable=0">
<meta http-equiv="Cache-Control" content="no-siteapp"/>
<link rel="stylesheet" th:href="@{/css/bootstrap.min.css}">
<link rel="stylesheet" th:href="@{/css/map.css}">
<link rel="stylesheet" th:href="@{/js/openlayer/ol.css}">
</head>
<body>
<select id="type">
<option value="marker">marker</option>
<option value="line">line</option>
<option value="circle">circle</option>
<option value="infoWindow">infoWindow</option>
</select>
<button id="drawOverlay">随机生成</button>
<div class="container" id="map"></div>
<div id="overlay" style="display: none;" class="tooltip tooltip-measure">
</div>
<script th:src="@{/js/jquery-1.9.1.js}" type="text/javascript"></script>
<script th:src="@{/js/bootstrap.min.js}" type="text/javascript"></script>
<script th:src="@{/js/openlayer/ol.js}" type="text/javascript"></script>
<script type="text/javascript">
var map;
$(function () {
init_map();
init_select_event();
});
function init_select_event(){
$("#drawOverlay").click(function(){
var key= $("#type").val();
if(key=="circle"){
drawCircle();
}else if(key=="marker"){
drawMarker();
}else if(key=="line"){
drawLine();
}else if(key=="infoWindow"){
addInfoWindow();
}
})
}
var source = new ol.source.Vector({});
var vector = new ol.layer.Vector({
source: source,
style: new ol.style.Style({
stroke: new ol.style.Stroke({
color: 'yellow',
width: 4
}),
fill: new ol.style.Fill({
color: 'blue'
})
})
});
var gaode=new ol.layer.Tile({
source:new ol.source.XYZ({
tileUrlFunction:function (coord) {
var z=coord[0];
var x=coord[1];
var y=-coord[2]-1;
var url='http://mt2.google.cn/vt/lyrs=m&scale=2&hl=zh-CN&gl=cn';
url+="&x=" + x+ "&y=" + y+ "&z="+z;
return url;
}
})
});
function init_map(){
map=new ol.Map({
layers:[gaode,vector],
view:new ol.View({
center:[118.78,32.07],
projection:'EPSG:4326',
zoom:14
}),
target:'map'
});
}
function panTo(lat,lng){
map.getView().setCenter([lng,lat]);
}
function pad(num,n){
n = n || 6;
var len = num.toString().length;
while (len < n) {
num = "0" + num;
len++;
}
return num;
}
function drawCircle(){
var lng=118+Math.random();
var lat=32+Math.random();
var circle=new ol.geom.Circle([lng,lat],0.01);
var feature=new ol.Feature({
geometry:circle
});
var style=new ol.style.Style({
stroke:new ol.style.Stroke({
color:'red'
}),
fill:new ol.style.Fill({
color:'red'
})
});
source.addFeature(feature);
feature.setStyle(style);
panTo(lat,lng);
}
var markerCount=0;
function drawMarker(){
markerCount++;
var lat=32.5+Math.random()/2;
var lng=118.5+Math.random()/2;
var marker = new ol.Feature({
geometry:new ol.geom.Point([lng,lat])
});
marker.setStyle(new ol.style.Style({
image:new ol.style.Icon({
src:'/map/images/map_red_bg.png',
scale:1
}),
text:new ol.style.Text({
text:''+markerCount,
fill:new ol.style.Fill({
color:'white'
}),
font:'20px sans-serif'
})
})
);
source.addFeature(marker);
panTo(lat,lng);
}
function drawLine(){
var lng=118+Math.random();
var lat=32+Math.random();
var lng2=lng+1;
var lat2=lat+1;
var coordinates=[ [lng,lat],[lng2,lat2] ];
var line=new ol.geom.LineString(coordinates);
var feature=new ol.Feature({
geometry:line
});
source.addFeature(feature);
panTo(lat,lng);
}
function addInfoWindow(){
var lat=118.5+Math.random()/2;
var lng=32.5+Math.random()/2;
var overlay=new ol.Overlay({
id:'effc3',
element:document.getElementById('overlay'),
position:[lng,lat],
});
map.addOverlay(overlay);
$("#overlay").html("hello world");
$("#overlay").show();
panTo(lat,lng);
}
</script>
</body>
</html>
2、框选交互、包括圆形选择、框选以及其他不规则图形
<!doctype html>
<html xmlns:th="http://www.thymeleaf.org">
<html lang="en">
<head>
<meta charset="UTF-8">
<title>map</title>
<meta name="renderer" content="webkit|ie-comp|ie-stand">
<meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1">
<meta name="viewport"
content="width=device-width, initial-scale=1.0, minimum-scale=1.0, maximum-scale=1.0, user-scalable=0">
<meta http-equiv="Cache-Control" content="no-siteapp"/>
<link rel="stylesheet" th:href="@{/css/bootstrap.min.css}">
<link rel="stylesheet" th:href="@{/js/openlayer/ol.css}">
</head>
<body>
<div class="main" style="display: flex;flex-direction: row;justify-content: space-between">
<div class="left" style="width:30%; ">
<select id="type">
<option value="LineString">LineString</option>
<option value="Circle">Circle</option>
<option value="Star">Star</option>
<option value="Box">Box</option>
<option value="Square">Square</option>
<option value="Polygon">Polygon</option>
</select>
<textarea id="showCoordinate" rows="20" cols="80"></textarea>
</div>
<div class="right" style="width: 70%">
<div class="container" id="map"></div>
</div>
</div>
<script th:src="@{/js/jquery-1.9.1.js}" type="text/javascript"></script>
<script th:src="@{/js/bootstrap.min.js}" type="text/javascript"></script>
<script th:src="@{/js/openlayer/ol.js}" type="text/javascript"></script>
<script type="text/javascript" th:inline="javascript">
var map;
$(function () {
init_map();
addInteraction();
});
var source = new ol.source.Vector({wrapX: false});
var vector = new ol.layer.Vector({
source: source
});
var gaode=new ol.layer.Tile({
source:new ol.source.XYZ({
tileUrlFunction:function (coord) {
var z=coord[0];
var x=coord[1];
var y=-coord[2]-1;
var url='http://mt2.google.cn/vt/lyrs=m&scale=2&hl=zh-CN&gl=cn';
url+="&x=" + x+ "&y=" + y+ "&z="+z;
return url;
}
})
});
function init_map(){
interaction=new ol.Map({
layers:[gaode,vector],
view:new ol.View({
center:[118.78,32.07],
projection:'EPSG:4326',
zoom:14
}),
target:'map'
})
}
function pad(num,n){
n = n || 6;
var len = num.toString().length;
while (len < n) {
num = "0" + num;
len++;
}
return num;
}
var typeSelect = document.getElementById('type');
var draw; // global so we can remove it later
function addInteraction() {
var value = typeSelect.value;
if (value !== 'None') {
var geometryFunction;
if (value === 'Square') {
value = 'Circle';
geometryFunction = ol.interaction.Draw.createRegularPolygon(4);
} else if (value === 'Box') {
value = 'Circle';
geometryFunction = ol.interaction.Draw.createBox();
} else if (value === 'Star') {
value = 'Circle';
geometryFunction = function(coordinates, geometry) {
var center = coordinates[0];
var last = coordinates[1];
var dx = center[0] - last[0];
var dy = center[1] - last[1];
var radius = Math.sqrt(dx * dx + dy * dy);
var rotation = Math.atan2(dy, dx);
var newCoordinates = [];
var numPoints = 12;
for (var i = 0; i < numPoints; ++i) {
var angle = rotation + i * 2 * Math.PI / numPoints;
var fraction = i % 2 === 0 ? 1 : 0.5;
var offsetX = radius * fraction * Math.cos(angle);
var offsetY = radius * fraction * Math.sin(angle);
newCoordinates.push([center[0] + offsetX, center[1] + offsetY]);
}
newCoordinates.push(newCoordinates[0].slice());
if (!geometry) {
geometry = new ol.geom.Polygon([newCoordinates]);
} else {
geometry.setCoordinates([newCoordinates]);
}
return geometry;
};
}
draw = new ol.interaction.Draw({
source: source,
type: value,
geometryFunction: geometryFunction
});
draw.on('drawend',function (evt) {
var poly=evt.feature.getGeometry();
var text=""
if(poly.getType()=="Circle"){
text="中心:"+JSON.stringify(poly.getCenter());
text+="\n";
text+="半径:"+poly.getRadius();
}else{
text=JSON.stringify(poly.getCoordinates());
}
$("#showCoordinate").val(text);
})
interaction.addInteraction(draw);
}
}
/**
* Handle change event.
*/
typeSelect.onchange = function() {
interaction.removeInteraction(draw);
addInteraction();
};
</script>
</body>
</html>

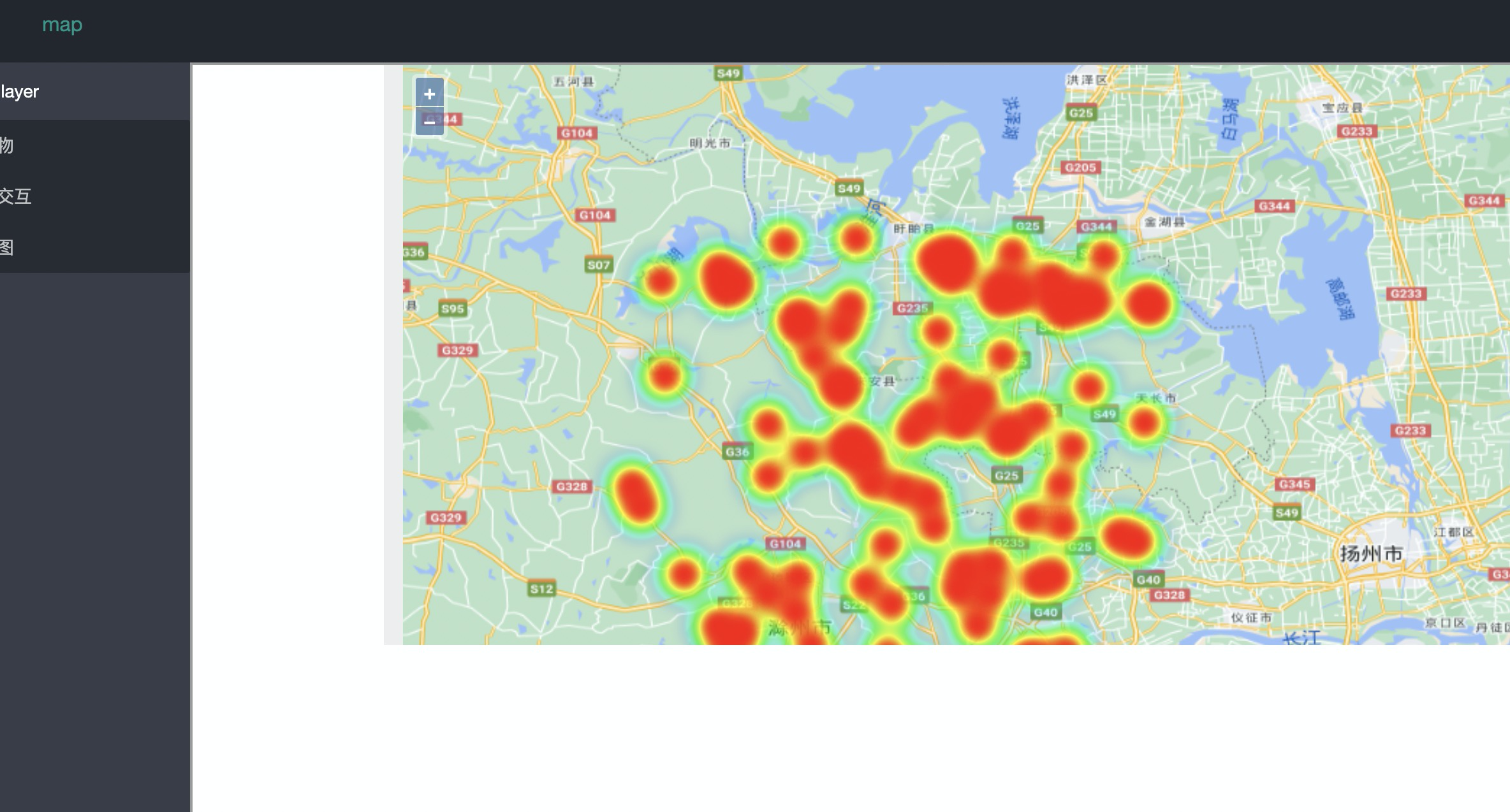

3、热力图
<!doctype html>
<html xmlns:th="http://www.thymeleaf.org">
<html lang="en">
<head>
<meta charset="UTF-8">
<title>map</title>
<meta name="renderer" content="webkit|ie-comp|ie-stand">
<meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1">
<meta name="viewport"
content="width=device-width, initial-scale=1.0, minimum-scale=1.0, maximum-scale=1.0, user-scalable=0">
<meta http-equiv="Cache-Control" content="no-siteapp"/>
<link rel="stylesheet" th:href="@{/css/bootstrap.min.css}">
<link rel="stylesheet" th:href="@{/css/map.css}">
<link rel="stylesheet" th:href="@{/js/openlayer/ol.css}">
</head>
<body>
<select id="type">
<option value="marker">marker</option>
<option value="line">line</option>
<option value="circle">circle</option>
<option value="infoWindow">infoWindow</option>
</select>
<button id="drawOverlay">随机生成</button>
<div class="container" id="map"></div>
<div id="overlay" style="display: none;" class="tooltip tooltip-measure">
</div>
<script th:src="@{/js/jquery-1.9.1.js}" type="text/javascript"></script>
<script th:src="@{/js/bootstrap.min.js}" type="text/javascript"></script>
<script th:src="@{/js/openlayer/ol.js}" type="text/javascript"></script>
<script type="text/javascript">
var map;
$(function () {
init_map();
init_select_event();
});
function init_select_event(){
$("#drawOverlay").click(function(){
var key= $("#type").val();
if(key=="circle"){
drawCircle();
}else if(key=="marker"){
drawMarker();
}else if(key=="line"){
drawLine();
}else if(key=="infoWindow"){
addInfoWindow();
}
})
}
var source = new ol.source.Vector({});
var vector = new ol.layer.Vector({
source: source,
style: new ol.style.Style({
stroke: new ol.style.Stroke({
color: 'yellow',
width: 4
}),
fill: new ol.style.Fill({
color: 'blue'
})
})
});
var gaode=new ol.layer.Tile({
source:new ol.source.XYZ({
tileUrlFunction:function (coord) {
var z=coord[0];
var x=coord[1];
var y=-coord[2]-1;
var url='http://mt2.google.cn/vt/lyrs=m&scale=2&hl=zh-CN&gl=cn';
url+="&x=" + x+ "&y=" + y+ "&z="+z;
return url;
}
})
});
function init_map(){
map=new ol.Map({
layers:[gaode,vector],
view:new ol.View({
center:[118.78,32.07],
projection:'EPSG:4326',
zoom:14
}),
target:'map'
});
}
function panTo(lat,lng){
map.getView().setCenter([lng,lat]);
}
function pad(num,n){
n = n || 6;
var len = num.toString().length;
while (len < n) {
num = "0" + num;
len++;
}
return num;
}
function drawCircle(){
var lng=118+Math.random();
var lat=32+Math.random();
var circle=new ol.geom.Circle([lng,lat],0.01);
var feature=new ol.Feature({
geometry:circle
});
var style=new ol.style.Style({
stroke:new ol.style.Stroke({
color:'red'
}),
fill:new ol.style.Fill({
color:'red'
})
});
source.addFeature(feature);
feature.setStyle(style);
panTo(lat,lng);
}
var markerCount=0;
function drawMarker(){
markerCount++;
var lat=32.5+Math.random()/2;
var lng=118.5+Math.random()/2;
var marker = new ol.Feature({
geometry:new ol.geom.Point([lng,lat])
});
marker.setStyle(new ol.style.Style({
image:new ol.style.Icon({
src:'/map/images/map_red_bg.png',
scale:1
}),
text:new ol.style.Text({
text:''+markerCount,
fill:new ol.style.Fill({
color:'white'
}),
font:'20px sans-serif'
})
})
);
source.addFeature(marker);
panTo(lat,lng);
}
function drawLine(){
var lng=118+Math.random();
var lat=32+Math.random();
var lng2=lng+1;
var lat2=lat+1;
var coordinates=[ [lng,lat],[lng2,lat2] ];
var line=new ol.geom.LineString(coordinates);
var feature=new ol.Feature({
geometry:line
});
source.addFeature(feature);
panTo(lat,lng);
}
function addInfoWindow(){
var lat=118.5+Math.random()/2;
var lng=32.5+Math.random()/2;
var overlay=new ol.Overlay({
id:'effc3',
element:document.getElementById('overlay'),
position:[lng,lat],
});
map.addOverlay(overlay);
$("#overlay").html("hello world");
$("#overlay").show();
panTo(lat,lng);
}
</script>
</body>
</html>
